GOLD STILE Line

A unique project of its kind, GOLD STILE is a modular solution that responds to the most varied requirements in modern cantilever cooking systems. The bearing structure, available in various lengths, can accommodate standard 700 or 900 mm deep gas and electric appliances, on one or both sides (it is also possible to form compositions of mixed models).

stile_gold_page
  • More

    Innovation

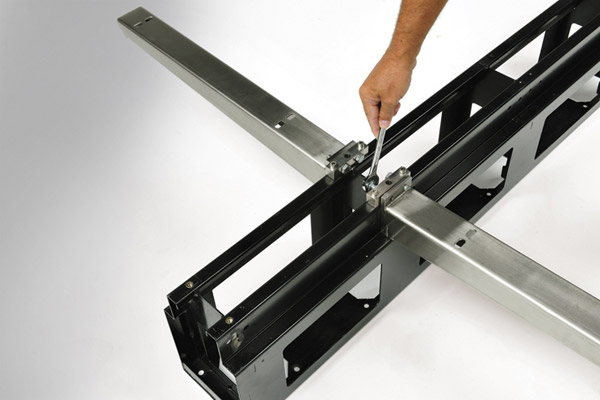

    Special self-bearing frame
    (which replaces the backs of the standard models)

    Close
  • More

    Design

    service ducts which enable straightforward water, gas and electric connections

    Close
  • More

    Quality

    Beam, columns for feet or anchoring bolts, is in very thick steel painted with epoxy powders. Maximum stability is guaranteed

    Close
  • More

    Simplicity

    Adjustable shelves for “TOP” equipment

    Close
  • More

    Flexibility

    Possibility to install standard equipment

    Close

OS00116

TYPE: BEAM

MATERIAL: STEEL

OS002

TYPE: COLUMN for FOOT

DIMENSIONs 182 x 200 x 275

OS003

TYPE: COLUMN for BOLTS

DIMENSIONS 182 x 200 x 350

OS006

TYPE: SERVICE DUCT

DIMENSIONS 240 x 168 x 349

OS004

TYPE: SIDE PANEL

MATERIAL: STAINLESS STEEL

OS05016

TYPE: TOP PANEL.

MATERIAL: STAINLESS STEEL

OS008

TYPE: BRACKET S700

DIMENSIONS: 718 x 79 x 99,5

OS007

TYPE: BRACKET S980

DIMENSIONS: 843 x 79 x 99,5

OS009

TYPE: TIE ROD FIXING

DIMENSIONS 100 x 23 x 23

OS010

TYPE: PLATE

DIMENSIONS 70 x 10 x 163

OS051

TYPE: SELF-BEARING FRAME

DIMENSIONS: 398 x 46 x 690

OS052

TYPE: SELF-BEARING FRAME

DIMENSIONS: 798 x 46 x 690

OS011

TYPE: MONOFRONTAL FOOT

DIMENSIONS 845 x 200 x 75

OS012

TYPE: BIFRONTAL FOOT

DIMENSIONS 1492 x 200 x 75

made in italy
