Boiling pans

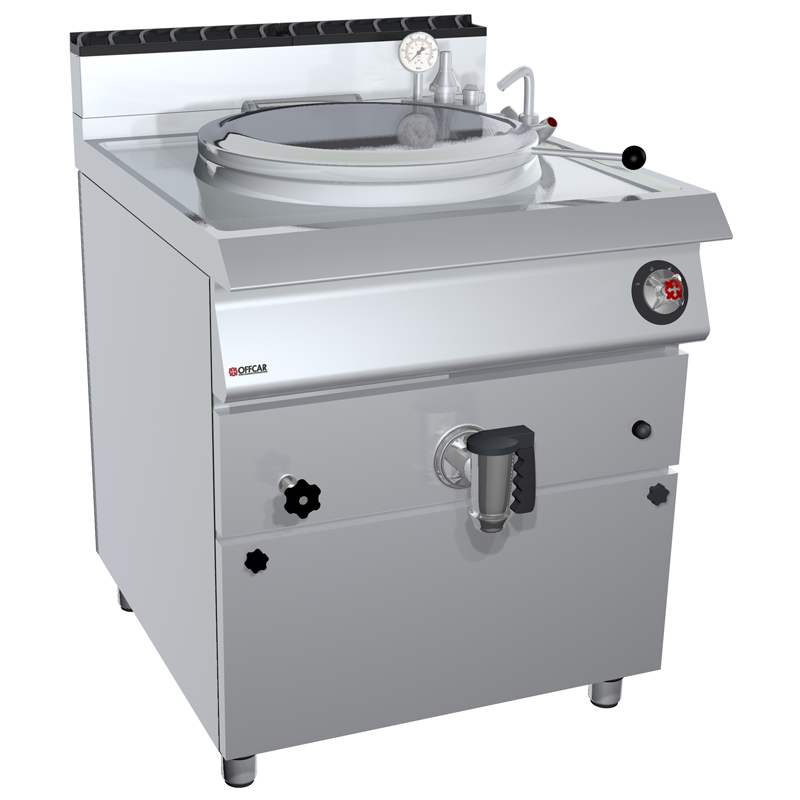

INDIRECT GAS BOILING PANS 100 LT.

Features:

External structure and worktop in AISI 304 stainless steel

Tank insulated with bottom in AISI 316 stainless steel

Lid hinged at the back and counter-balanced, with heat-resistant handle

Tank capacity 100 lt.

Tank filling unit in chromium-plated brass

Front drainage tap in chromium-plated brass with heat-resistant handle

Tank with jacket

Pressure in the water-filled jacket is visible on a pressure gauge

Tap fot topping up of water in racket

Tap for checking water level

Indirect gas heating with stainless steel burners with stabilized flame

Valve tap with pilot flame for burner ignition

Electronic battery ignition of the pilot falme

Safety thermostat with manual reset

dimensioni40x40
Dimensions
800x900x900
potenza_gas_40x40
GAS POWER kW
21
allac_gas_40x40
GAS CONNECTION
Ø 1/2“
Request:





STILE 980

Functionality, robustness, ergonomic design and compositional flexibility are the outstanding features of the Style 980-990 project.

The 980-990 Stile series are the answer to the most demanding needs for power, production capacity and attention for details in large workplaces.
